Sinker Bar
Sinker Bar (Grade C, K, D, HS)
Description

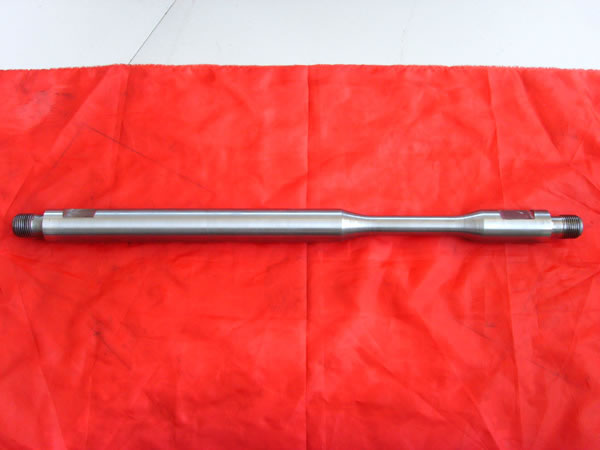

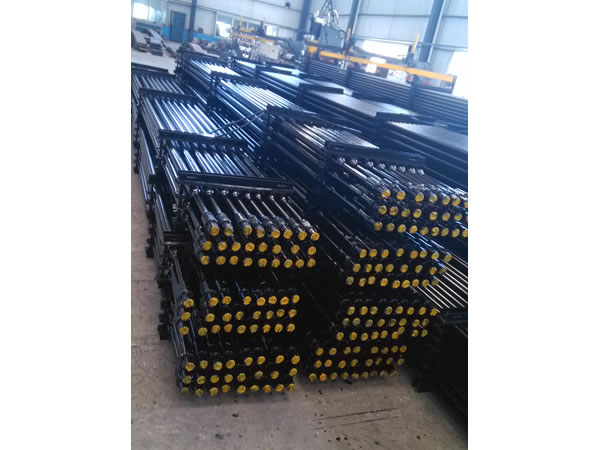

Sinker bar, a steel rod of a specified length, normally in a larger diameter than sucker rods, is provided in standard sizes with externally threaded ends offered to add weight and stability to the sucker rod string. An oil well uses only one sinker bar, and it is placed at the bottom of the sucker rod string. We offer carbon steel sinker bar, alloy steel sinker bar, etc.
Features
Generally, sinker bar has one elevator neck on one end, and pin threads on each end maybe sucker rod thread or polished rod thread, determined by the sucker rod string.
Advantages
We produce all grades of sinker bars in accordance with API Specification 11B. We use pit furnace to carry out heat treatment for larger diameter sinker bars to guarantee qualified mechanical properties and straightness of API sinker bars.
Parameter
Description
Sinker bar, a steel rod of a specified length, normally in a larger diameter than sucker rods, is provided in standard sizes with externally threaded ends offered to add weight and stability to the sucker rod string. An oil well uses only one sinker bar, and it is placed at the bottom of the sucker rod string. We offer carbon steel sinker bar, alloy steel sinker bar, etc.
Features
Generally, sinker bar has one elevator neck on one end, and pin threads on each end maybe sucker rod thread or polished rod thread, determined by the sucker rod string.
Advantages
We produce all grades of sinker bars in accordance with API Specification 11B. We use pit furnace to carry out heat treatment for larger diameter sinker bars to guarantee qualified mechanical properties and straightness of API sinker bars.
Parameter
Dimensions and Tolerances of Sinker Bars | ||||||||||||
Nominal Size | 1-1/4 in. | 1-3/8 in. | 1-1/2 in. | 1-5/8 in. | 1-3/4 in. | |||||||
in. | mm | in. | mm | in. | mm | in | mm | in. | mm | |||
With Sucker Rod Pin Threads | ||||||||||||
Sinker Bar Diameter | Size | 1.250 | 31.75 | 1.375 | 34.93 | 1.500 | 38.10 | 1.625 | 41.28 | 1.750 | 44.45 | |
Tolerances |
+0.000 -0.030 |
+0.00 -0.76 |
+0.000 -0.030 |
+0.00 -0.76 |
+0.000 -0.030 |
+0.00 -0.76 |
+0.000 -0.030 |
+0.00 -0.76 |
+0.000 -0.030 |
+0.00 -0.76 |
||
Pin Shoulder to Wrench Flat | Max. Size | 0.750 | 19.05 | 0.750 | 19.05 | 0.750 | 19.05 | 0.750 | 19.05 | 0.750 | 19.05 | |
of Wrench Flat (2 flats standard) | Size | 1.000 | 25.40 | 1.000 | 25.40 | 1.3125 | 33.34 | 1.3125 | 33.34 | 1.500 | 38.10 | |
Tolerances | ±0.03125 | ±0.794 | ±0.03125 | ±0.794 | ±0.03125 | ±0.794 | ±0.03125 | ±0.794 | ±0.03125 | ±0.794 | ||
Elevator Neck Diameter | Size | 0.875 | 22.23 | 1.000 | 25.40 | 1.000 | 25.40 | 1.000 | 25.40 | 1.000 | 25.40 | |
Tolerances |
+0.009 -0.018 |
+0.23 -0.46 |
+0.009 -0.018 |
+0.23 -0.46 |
+0.009 -0.018 |
+0.23 -0.46 |
+0.009 -0.018 |
+0.23 -0.46 |
+0.009 -0.018 |
+0.23 -0.46 |
||
Length of Sinker Bar | Size | 240 | 6,096 | 240 | 6,096 | 240 | 6,096 | 240 | 6,096 | 240 | 6,096 | |
300 | 7,620 | 300 | 7,620 | 300 | 7,620 | 300 | 7,620 | 300 | 7,620 | |||
360 | 9,144 | 360 | 9,144 | 360 | 9,144 | 360 | 9,144 | 360 | 9,144 | |||
Tolerances | ±2.000 | ±50.80 | ±2.000 | ±50.80 | ±2.000 | ±50.80 | ±2.000 | ±50.80 | ±2.000 | ±50.80 | ||
Length of Wrench Flat | Min. Length | 1.250 | 31.75 | 1.250 | 31.75 | 1.250 | 31.75 | 1.250 | 31.75 | 1.250 | 31.75 | |
Rod Pin Size (Nominal Size) | 5/8 | 5/8 | 3/4 | 7/8 | 7/8 | |||||||
Length of Elevator Neck | Min. Length | 4.000 | 101.60 | 4.000 | 101.60 | 4.000 | 101.60 | 4.000 | 101.60 | 4.000 | 101.60 | |
With Polished Rod Pin Threads | ||||||||||||
Rod Pin Size (Nominal Size) | Size | 3/4 | 3/4 | 7/8 | ||||||||
1. Four wrench flats are available. | ||||||||||||
2. Customers can choose from elevator neck. | ||||||||||||
3. Length of sinker bars shall be measured from one outer end of pin to the other outer end of pin. 4. Minimum length excludes fillet. |
||||||||||||
5. Dimensions of sinker bars with polished rod threads are the same as those of sinker bars with sucker rod threads as shown above. |
