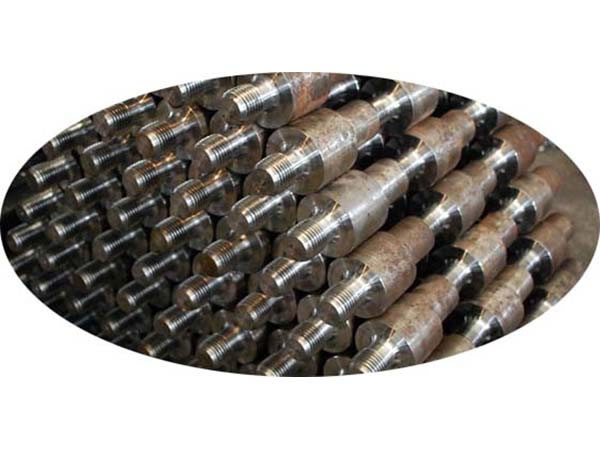

Connector is a kind of connection accessory which can be used to connect female or male thread according to the usage. Connector can be classified as double male connector (which can be further classified as double male connector with same diameter and reducing double male connector) and male-to-female connector.
Connectors are made with high quality carbon steel (45# steel) or alloy steel (35CrMoA), and their mechanical property is hardness, which is HRA56-62 if no special requirement is asked.
Advantages
Our connectors are independently developed by us according to our customers’ special requirements for the connection of sucker rod strings. These connectors can help customers to easily connect the sucker rod string and reduce costs.
Classification
Connectors can be classified as double male connectors and male-to-female connector.
Note
When choosing connectors, you must be clear about the types of thread on two ends. This will help you to get the right connector.
Parameter
Description
Connector is a kind of connection accessory which can be used to connect female or male thread according to the usage. Connector can be classified as double male connector (which can be further classified as double male connector with same diameter and reducing double male connector) and male-to-female connector.
Connectors are made with high quality carbon steel (45# steel) or alloy steel (35CrMoA), and their mechanical property is hardness, which is HRA56-62 if no special requirement is asked.
Advantages
Our connectors are independently developed by us according to our customers’ special requirements for the connection of sucker rod strings. These connectors can help customers to easily connect the sucker rod string and reduce costs.
Classification
Connectors can be classified as double male connectors and male-to-female connector.
Note
When choosing connectors, you must be clear about the types of thread on two ends. This will help you to get the right connector.
Parameter
Specifications of Double Male Connector | ||||||
No. | Type | TJJT 16 | TJJT 19 | TJJT 22 | TJJT 25 | TJJT 28 |
1 | Size (in) | 5/8 | 3/4 | 7/8 | 1 | 1-1/8 |
2 | Shoulder OD (mm) | 31.80 | 38.10 | 41.30 | 50.80 | 57.20 |
3 | Length (+1.57, 0) | 110.0 | 114.3 | 127.0 | 140.0 | 152.4 |
4 | Nominal OD of Pin (in) | 15/16 | 1-1/16 | 1-3/16 | 1-3/8 | 1-9/16 |
5 | Min. Length of Wrench Square Neck | 31.8 | 31.8 | 31.8 | 38.1 | 41.3 |
6 | Distance Between Wrench Square Necks (0, -0.8) | 28.6 | 34.9 | 36.5 | 46.0 | 50.8 |
Specifications of Reducing Double Male Connector | ||||||||
No. | Type | Size |
Connector Length L (+1.57,0) |
Shoulder OD (mm) |
Nominal OD of Pin Thread (in) | Wrench Square Neck | ||
Big End | Small End |
Min. Length WL |
Gap Wf (0, -0.8) | |||||
1 | YJJT16 × 19 | 5/8 × 3/4 | 110.0 | 38.10 | 1-1/16 | 15/16 | 31.8 | 34.9 |
2 | YJJT19 × 22 | 3/4 × 7/8 | 120.6 | 41.30 | 1-3/16 | 1-1/16 | 31.8 | 38.1 |
3 | YJJT22 × 25 | 7/8 × 1 | 140 | 50.80 | 1-3/8 | 1-3/16 | 38.1 | 47.6 |
4 | YJJT25 × 28 | 1 × 1-1/8 | 147.3 | 57.20 | 1-9/16 | 1-3/8 | 41.3 | 50.8 |
Specifications of Male-to-female Connector | ||||||
No. | Type | TGMJT16 | TGMJT19 | TGMJT22 | TGMJT25 | TGMJT28 |
1 | Size (in) | 5/8 | 3/4 | 7/8 | 1 | 1-1/8 |
2 | Shoulder OD (mm) | 31.80 | 38.10 | 41.30 | 50.80 | 57.20 |
3 | Connector Length (+1.57, 0) | 110.0 | 114.3 | 127.0 | 140.0 | 152.4 |
4 | Nominal OD of External/Inner Thread (in) | 15/16 | 1-1/16 | 1-3/16 | 1-3/8 | 1-9/16 |
5 | Min. Length of Wrench Square Neck | Design according to the requirements of full size couplings specified in SY/T 5029-2013 | ||||
6 | Distance Between Wrench Square Necks Wf (0, -0.8) |
Specifications of Reducing Male-to-female Connector | ||||||||
No. | Type | Size (in) |
Connector Length L (+1.57, 0) |
Outside Diameter OD (mm) |
Nominal OD of Inner/ External Pin Thread (in) | Wrench Square Neck | ||
Male End | Female End | Min. Length WL | Gap Wf (0, -0.8) | |||||
1 | YGMJT 16 × 19 | 5/8 × 3/4 | 110.0 | 38.10 | 1-1/16 | 15/16 | Designed according to the requirements of slim hole couplings of wrench square | |
2 | YGMJT 19 × 22 | 3/4 × 7/8 | 120 | 41.30 | 1-3/16 | 1-1/16 | ||
3 | YGMJT 22 × 25 | 7/8 × 1 | 135 | 50.80 | 1-3/8 | 1-3/16 | ||
4 | YGMJT 25 × 28 | 1 × 1-1/8 | 127.0 | 57.20 | 1-9/16 | 1-3/8 |
